IV Giving Sets

OVERVIEW

Intravenous (IV) therapy plays an extensive role in the care of patients and refers to the parenteral administration of fluids and medications, nutritional support, and transfusion therapy using of veins to inject the substances. No longer confined to the hospital, intravenous therapies are supplementally delivered also in alternative care settings such as the home. Technologically IV therapy can be delivered by various types of administration sets, designed to meet customer demands from basic to sophisticated requirements, e.g. gravity tubing, pump tubing, flow-regulating devices, volume-controlled tubing etc.

Dosifix-neue-rollenkl4037014-

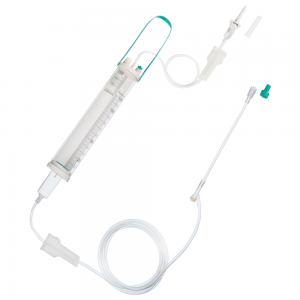

Dosifix®

IV administration set with Dosage Burette : contains a metered small-volume chamber designed to limit the amount of solution available to the patient, usually for safety, but also as an intermittent infusion of medication that can be admixed immediately before infusion. Primarily required for pediatric and neonatal patients.
Suitable for gravity infusions :

  • Universal, vented piercing spike
  • Bacteria-tight air vent, closable with snap cap
  • Dosage container 150 ml, with fine graduation
    • Injection site (latex) for drug addition
    • Automatic shut-off swim valve to prevent air embolism. Latex-free
    • Flexible, transparent drip chamber with micro dropper, 60 drops = 1 ml ± 0.1 ml (aqua dist.)
    • 15 µm fluid filter as integral part of drip chamber
  • Two advanced, precise roller clamps, good to control flow rate, comfortable to hold.Spike dock for secure spike discard
  • Soft, clear PVC tubing with standard lumen 3 x 4.1 mm, standard length 150 cm (total 175 cm), DEHP free plasticizer with well documented safety properties
  • Pressure resistant max. 400 mm Hg (0.5 bar)
  • Y-injection site (latex)
  • Screw tight Luer Lock fitting to prevent accidental disconnection

02 IntraFix Air G

Intrafix® Primeline

Standard IV Set – For administering all kinds of infusions, universal IV administration sets with air vent for gravity infusions and pressure infusions with non-dedicated infusion pumps (pressure resistant up to 2 bar) :

  • Ergonomically designed 3-part drip chamber
    • Universal, vented piercing spike. Spiking solution container with ease and preventing contamination
    • Bacteria-tight proven air vent, closable with handy snap cap
    • Fully transparent upper part allows quick drop rate check
    • Push ring for comfortable and secure gripping. Ideal for attachment of Infusomat® pump drip sensor
    • Extended, detached drip element provides even drop formation; 20 drops = 1ml ± 0.1 ml (aqua dist.)
    • Elastic pump chamber enables one-click fluid level setting
    • Offers a high fluid level as guard against air entrainment
    • Large 15 µm filter, provides high flow rate and protects against larger particles
  • Advanced precise roller clamp
    • Good to control flow rate, comfortable to hold. Spike dock for secure spike discard. Housing colour “orange”
  • Screw tight Luer Lock fitting
    • To prevent accidental disconnection
  • Soft, clear PVC tubing
    • With standard lumen 3 x 4.1 mm, standard length 180 cm, DEHP free plasticizer with superior, well documented safety properties

Available in :

  • 4116011F – SANGOFIX AIR, filter area 10 cm2, Blood Admin Set vented for blood bottles and blood bags, w/200 Micron standard filter, 100’s/box [IND], box
  • 4039149 – DOSIFIX 120ML SV 15MFF 160CM with 120ml burette microdropper, 60 drops/ml, 15 micron fluid filter, latex injection pc, distal Luer Lock connector, 25’s/box [IND], box
  • 4062182 – INTRAFIX PRIMELINE 180CM I.V administration Set for Gravity, Infusion, Luer Lock, with 15 micron fluid filter in the chamber and Y injection site along the tubing, 100’s/box
