YH Med Pad Mattress W Pump, Bubble 2.8″ / Cell 4.5″

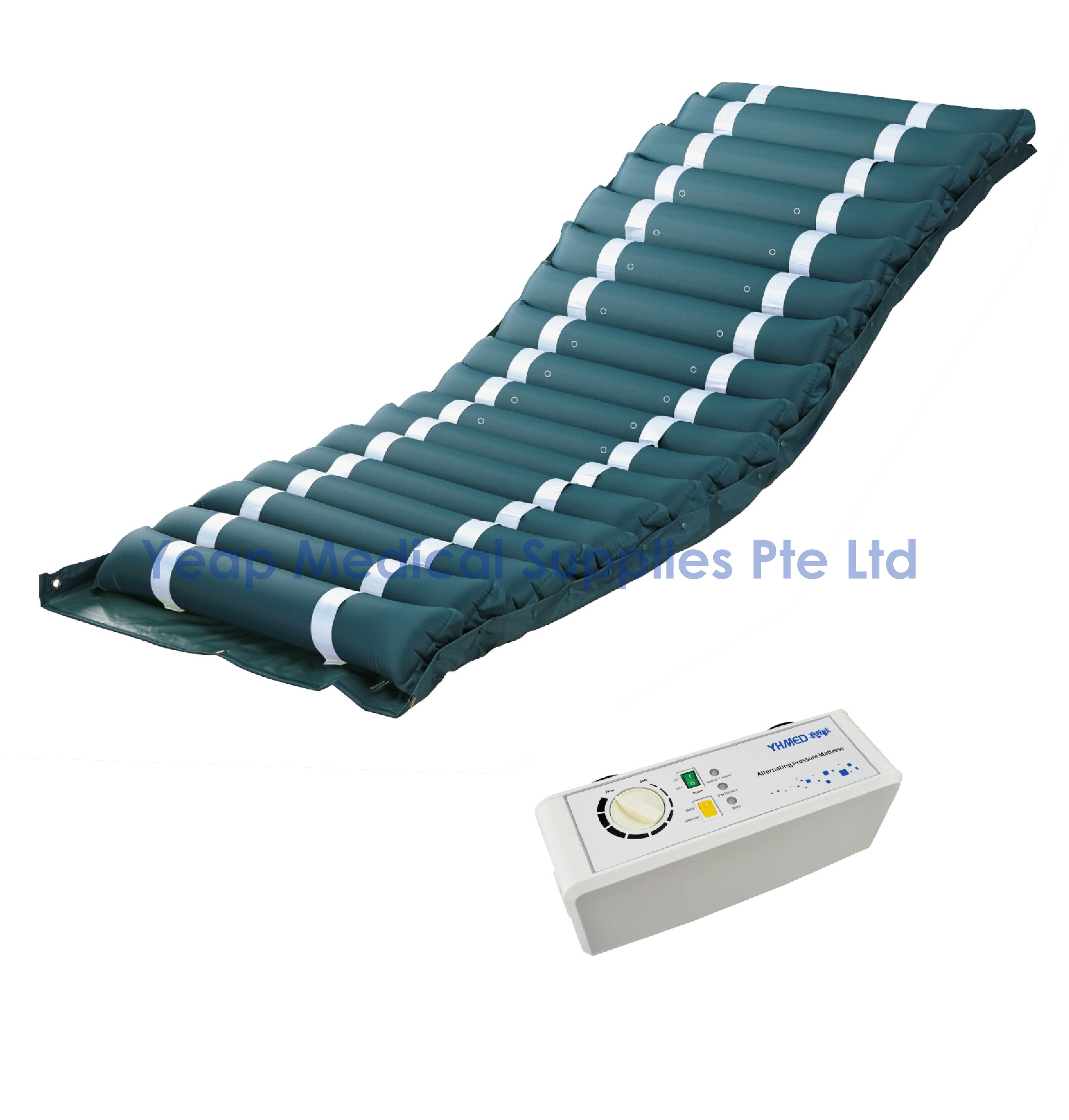

Air Mattress (YH Med), 4.5″ Cell Pad Mattress Alternating Pressure Mattress is made up by 18 pcs of 11 cm / 4.5″ cells. The Alternating System includes A/B/C 3 groups of cells design (6 cells per group). During alternating, there always have 2 groups of cells keep inflating, it means that it will have 12 cells can share and support the patient’s weight. Compared with the A/B 2 groups alternating model (B) (just have 9 cells keep inflating at the same time), the share weight of the A/B/C Cycle Mode alternating mattress will be more average. This series is :

  • More Comfortable
  • More Quiet
  • Better Sleeping Quality
  • Waterproof
  • Air Permeability
  • Easy for Cleaning
  • Better sleeping quality
  • Mattress Extra Flap
  • Simple and Light
  • Ultra-Quite Pump
  • Provide the slience and comfortable rehabilitation environment to the patient with the ultra quiet design
  • Easy for handling, the output pressure can be adjusted
  • Light shape, the hanger design is suitable to hang on all kinds of nursing bed
  • 12 months warranty on pump only
  • Material: Cover: Nylon+PU Cell: Nylon+PVC
  • Cell: 11cm / 4.5″ Inflation Cell X 18 Pieces + 1 Free Spare Cell
  • Inflation Size(lengthxwidthxheight): 200x90x 11 cm
  • Max Weight Support: 145kg
  • Material Thickness: 0.36mm
  • Pressure Ulcer Stage: I,I1
  • Mattress System: Overlay
  • Alternating Cycle Mode: A/B/C Alternating (1-in-3) 2.
  • Size(lengthxwidthxheight): 27x 13×10.5cm
  • Input Power: 220v / 110v ; 50Hz / 60Hz
  • Output Pressure Range: 55-120mmHg
  • Air output: 7-8 L/min
  • Cycle time: 12 min
  • Alternate / Static switch mode
  • Low pressure indicator

QDC-303 - (P1000PUMP)

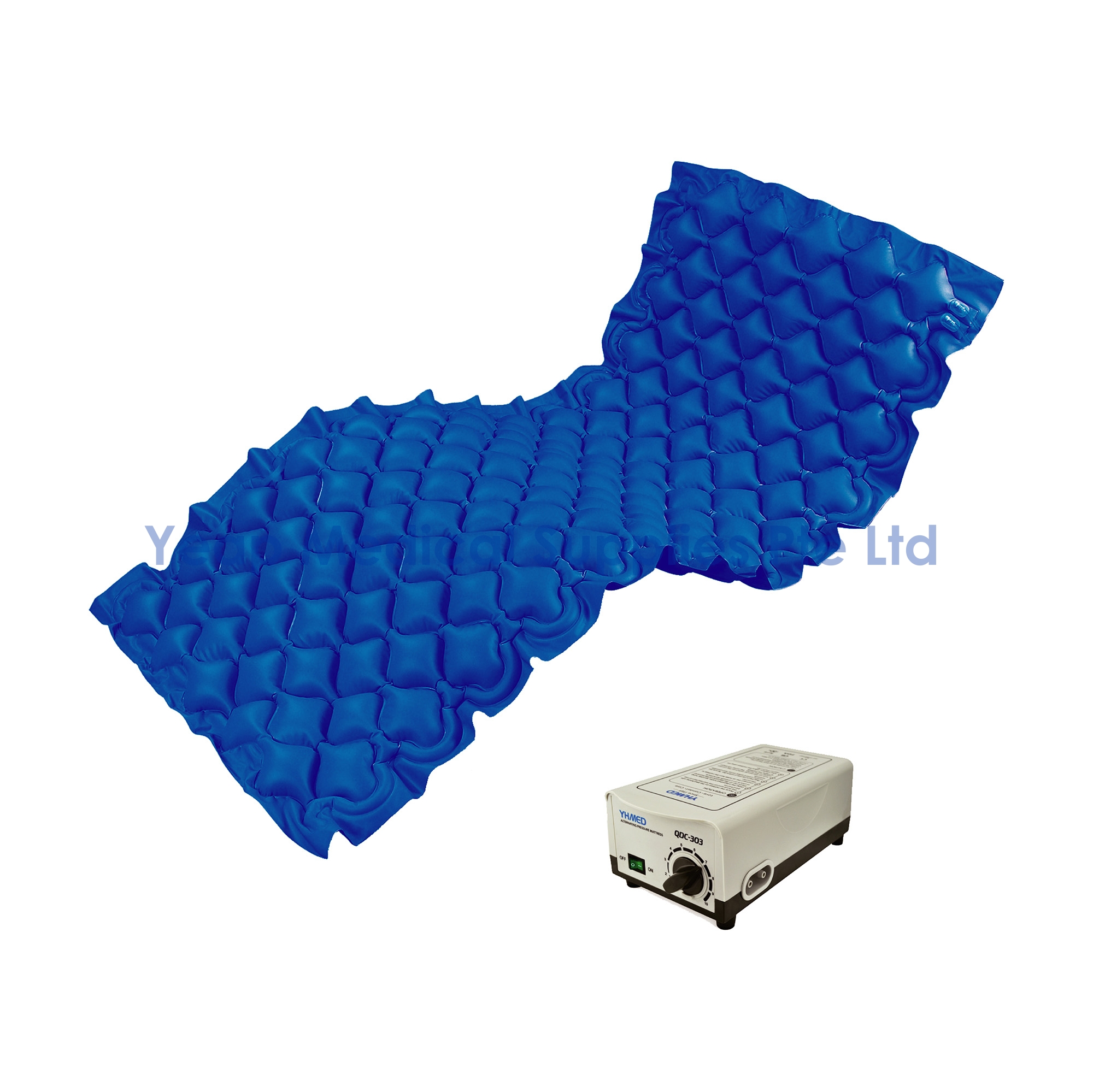

Air Mattress (YH Med), 2.8″ Bubble Pad Mattress is designed for the treatment and prevention of pressure sore stage I in short-term and domiciliary therapies. The mattress in PVC is composed of 130 7cm-high bubble cells, particularly comfortable, it is fixed to the bed by extra flaps on both top and bottom side. Very easy to install, maintain and use thanks to the possibility of adjust comfort range. The pump can be hung to the end of the bed by means of two hooks. This series is :

  • Dimensions without flaps (LxWxH): 200x90x7 cm
  • Extension Flaps length: 50 cm+ 50cm (Head & Foot Side)
  • Mattress material: TW NanYa EN71 Medical-Grade PVC
  • Material thickness: 0.35 mm
  • Cold-resistamt: -30t
  • Number of cells: 130
  • Weight support: 135 kg
  • Mattress Forming Model: One-Time Forming(8s)
  • Test Duration: 24 Hours (Inflation)
  • The Most Quiet Compressor
  • Long Life Compressor
  • Less 5% Pressure Fall-Off after 1 year used
  • 12 months warranty on pump only
  • Electrical: AC 110V/220V 50Hz/60Hz
  • Pressure range: 40-100 mmHg
  • Air output: 7-8 L/min
  • Dimensions(LxWxH): 26.5×13.5×10 cm
  • Plastic Casing: Taiwan Chimei ABS
  • Test Duration: 24 Hours
  • TUV-CE IEC/EN60601-1&60601-1-2
  • Synchronous Motor: TW Ann Yih Brand
  • Alternating: 1-in-2

Available in:

  • QDC-303 – (P1000PUMP) YHMED 2.8″ Bubble Pad Mattress with P1000 Pump, unit
  • QDC-501BCPR(P3000A3ESPUMP) – YHMED 4.5″ Alternating Mattress with P2000III Pump, unit
